 Multiple carburetor intake manifolds for use with Pontiac engines



Original 4 cyl

 Original 8 cyl

Offenhauser 4

 Clifford 6 | Offenhauser 6

 Doug Nash 8 | Edelbrock 8 | Edmunds | Mickey Thompson 8 | Offenhauser 8 | Weiand 8 | Wentzler



Blower manifolds for use with Pontiac engines

Edelbrock | Mickey Thompson | Weiand



ORIGINAL EQUIPMENT



4 CYLINDER

10038471 (2x4) (Edelbrock number 2983) (2.5 litre race)         NOS manifold $525.



8 CYLINDER

D-32960 (2x4 cast iron) (1956 developmental 317)

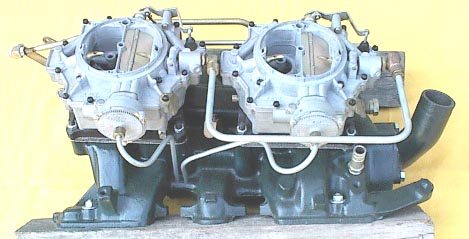

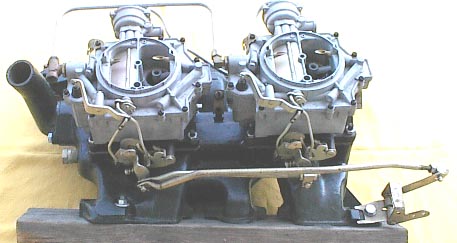

523554 (2x4 cast iron) (1956 production 317)

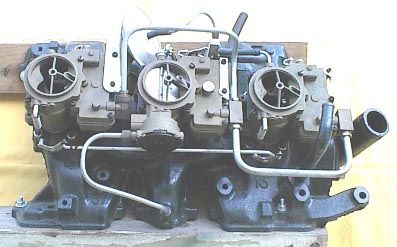

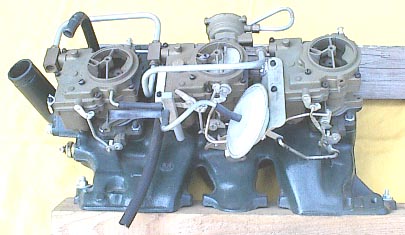

528533 (3x2 cast iron) (1957 production 347)

529371 (3x2 cast iron) (1958 production 370)

532422 (3x2 cast iron) (1959 production 389)

535552 (3x2 cast iron) (1960 Super duty 389)

536194 (3x2 cast iron) (1960 production 389)

538202 (3x2 cast iron) (1961 production 389)

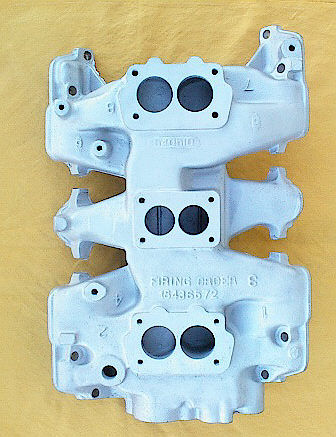

540510 (3x2 aluminum) (Super duty) (fits 1955 – 1960 cylinder heads) Used manifold $425.

542991 (2x4 aluminum) (1961, 1962 Super duty)

541690 (3x2 cast iron)  (1962 production 389, 421)

9770319 (2x4 aluminum) (1962 Super duty 421)

9770859 (2x4 aluminum) (1962, 1963 Super duty 421)

9772128 (2x4 aluminum) (1963 Super duty 421)

9772598 (2x4 aluminum) (1963 Super duty 421)

9770275 (3x2 cast iron) (1963 production 389, 421)

9775088 (3x2 cast iron) (1964 production 389, 421)

9778818 (3x2 cast iron) (1965 production 389, 421)

9782898 (3x2 cast iron) (1966 production 389, 421)

478489 (2x4 aluminum) (1969 RA V 303)

546235 (2x4 aluminum) (1969 RA V 303)



AFTERMARKET



4 CYLINDER



OFFENHAUSER

5307 (3x2 with 3 bolt carbs or 2x2 with 4 bolt carbs) (early 1960’s Pontiac 195 CID)



6 CYLINDER



CLIFFORD

42-3040 (3x2 Weber sidedraft carbs) (230, 250 CID both OHV and OHC engines)

42-4650 (2x2 or 2x4 – different baseplates available) (230, 250 CID OHV only)



OFFENHAUSER

5415 (2x1) (1966-1969 OHV 230, 250 CID) (doesn’t fit OHC)

5414 (3x1) (1966-1969 OHV 230, 250 CID) (doesn’t fit OHC)



8 CYLINDER



DOUG NASH

Number unknown (no casting number) (2x4) (1965 and newer heads)



EDMUNDS

(2x2) Pontiac straight eight engines, beginning year unknown~1954



EDELBROCK

B-20 (catalog number 2210) aluminum (1955-1960 Pontiac V-8 engines) (6-71 supercharger)

O2B (2x2) (215 CID aluminum V-8 1961, 1962)

O2BC (2x2) (215 CID aluminum V-8 1961, 1962 competition)

P-303 (3x2) (catalog number 2145) (1955-1964 Pontiac V-8 engines)

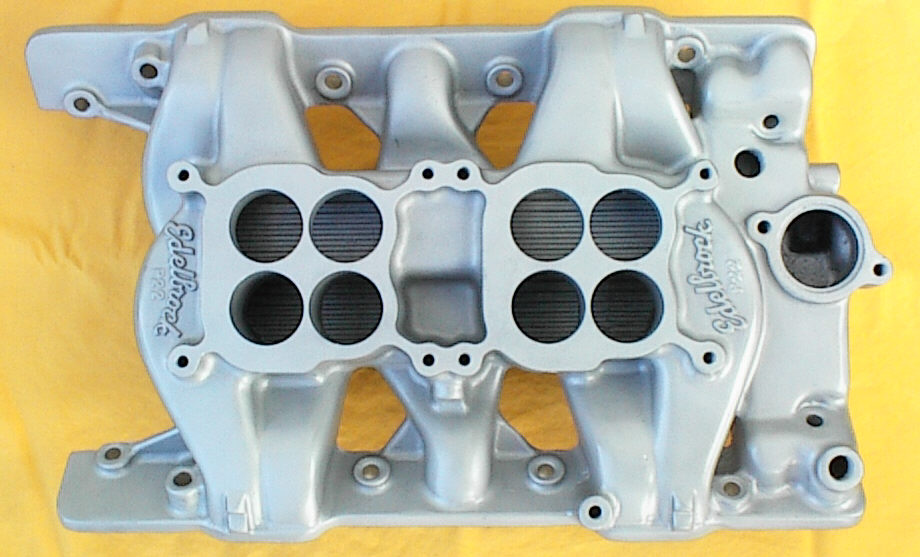

P-22 (2x4) (catalog number 2140) (1955-1964 Pontiac V-8 engines)

P-65 (2x4) (catalog number 2195) (1965 and newer Pontiac V-8 engines)

MP-6 (6x2) (1955-1960 Pontiac V-8 engines)            Used manifold $595.

X-2 (6x2) (catalog number 2160) aluminum (1955-1964 Pontiac V-8 engines)

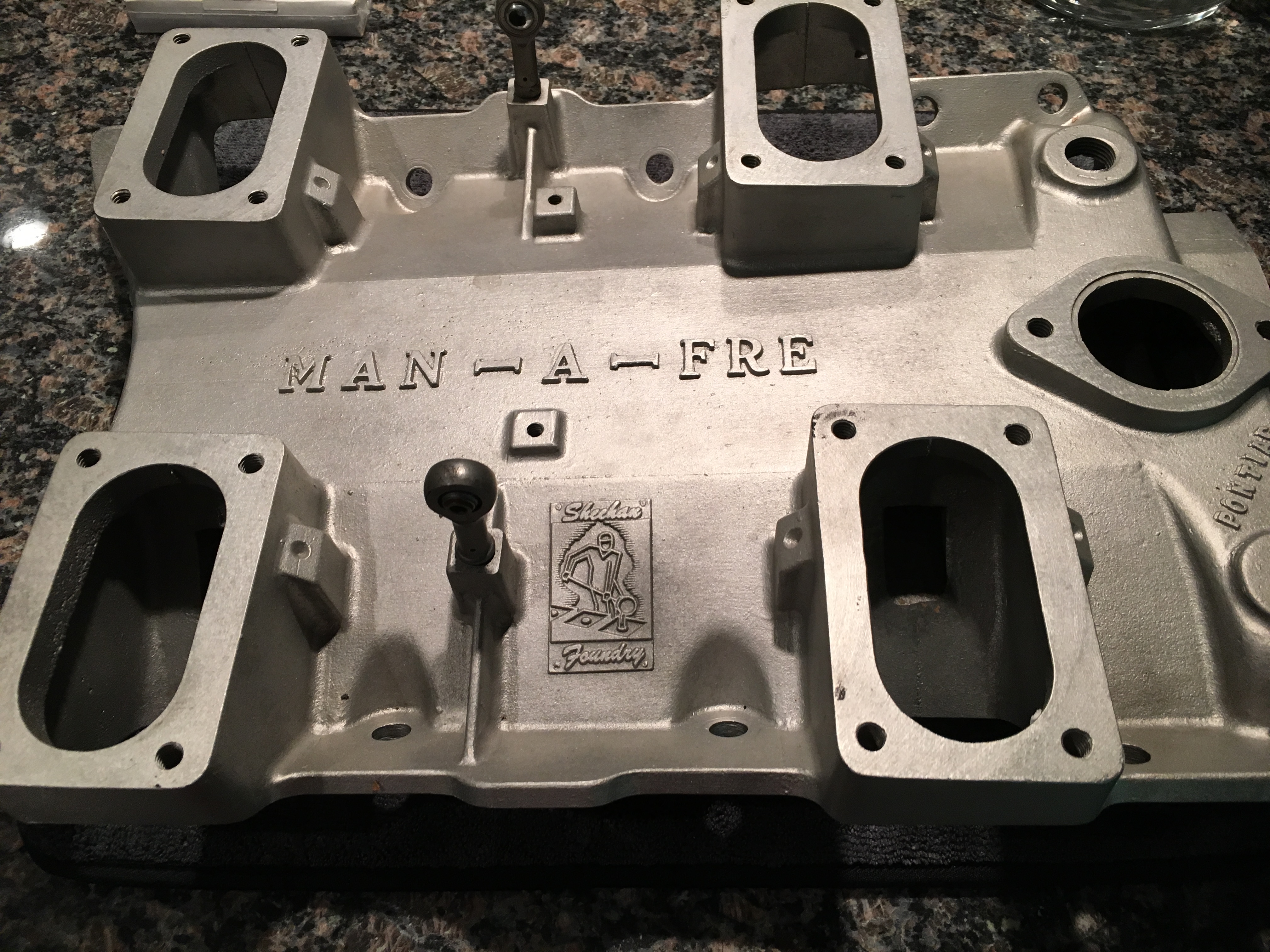

MAN-A-FRE

(Number unknown) (aluminum 4x2 Rochester carbs) (1965 up engines)



MICKEY THOMPSON

P-135 (2x4 cross ram) (casting number 3779135) (1955-1964 Pontiac V-8 engines)

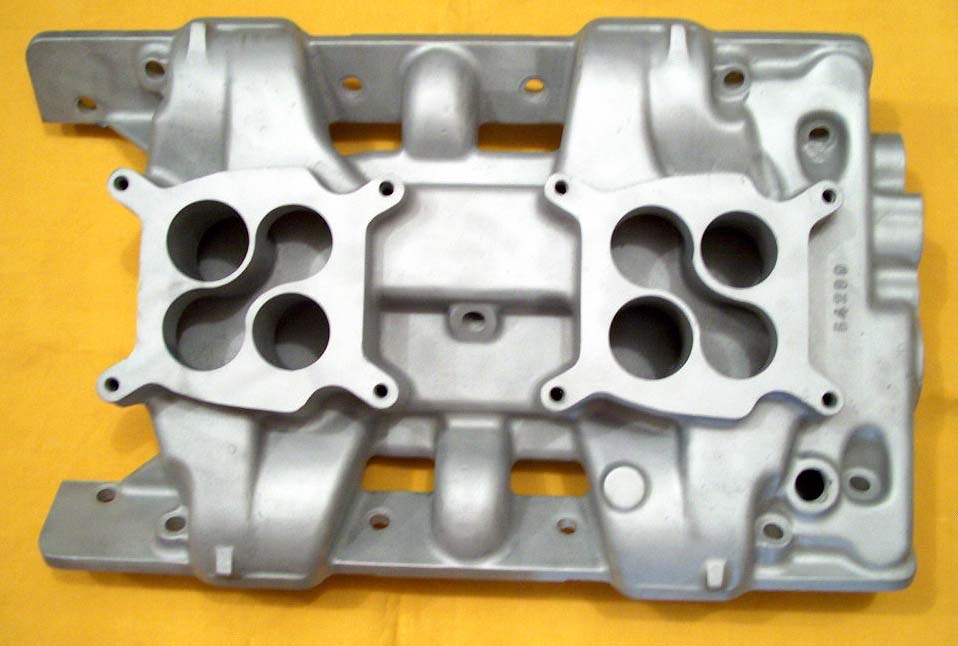

P-136 (2x4 inline) (casting number 54299) (duplicate of Pontiac SD 542991) (1955-1964 Pontiac V-8)

3786305 (aluminum 4x2 Weber carbs) (1961-1963 215 CID)

3786385 (aluminum 4x2 Weber carbs) (1961-1963 215 CID)

3786306 (aluminum 2x4) (1961-1963 215 CID)





OFFENHAUSER

5262 (2x2) (215 CID aluminum V-8)                     NOS manifold $340.

5028 (3x2 – small carbs) ( 1955-1960 Pontiac V-8)

5255TP (3x2 – 2 large, 1 small carb) (1955-1960 Pontiac V-8)

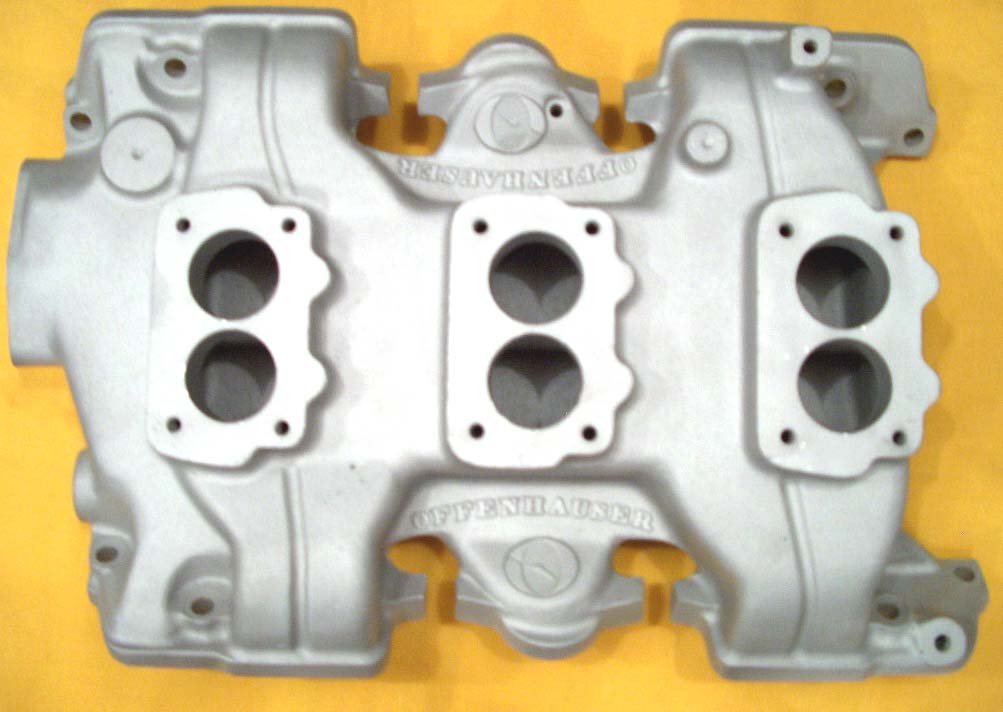

5255 (3x2 – large carbs) (1955-1960 Pontiac V-8)

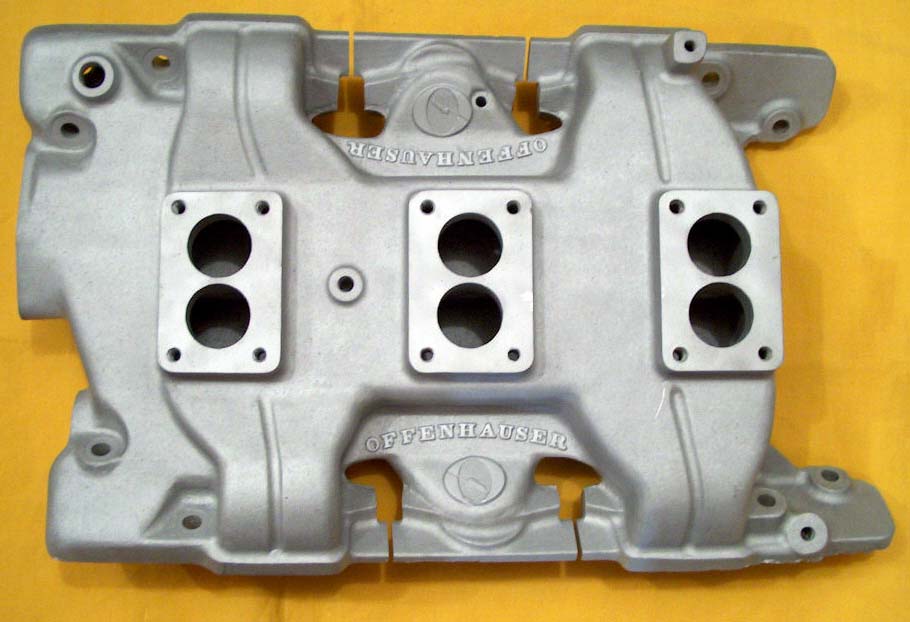

5161 (3x2 – small carbs) (1961-1964 Pontiac V-8)

5256TP (3x2 – factory carbs) (1961-1964 Pontiac V-8)

5256 (3x2 – 3 large carbs) (1961-1964 Pontiac V-8)

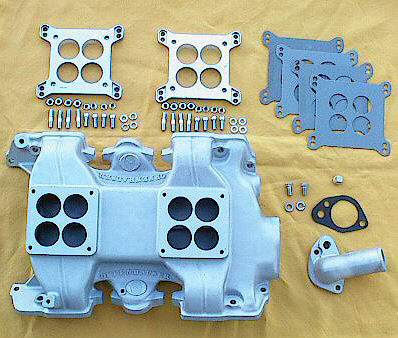

5029 (2x4 AFB carbs – with heat) (1955-1960 Pontiac V-8)

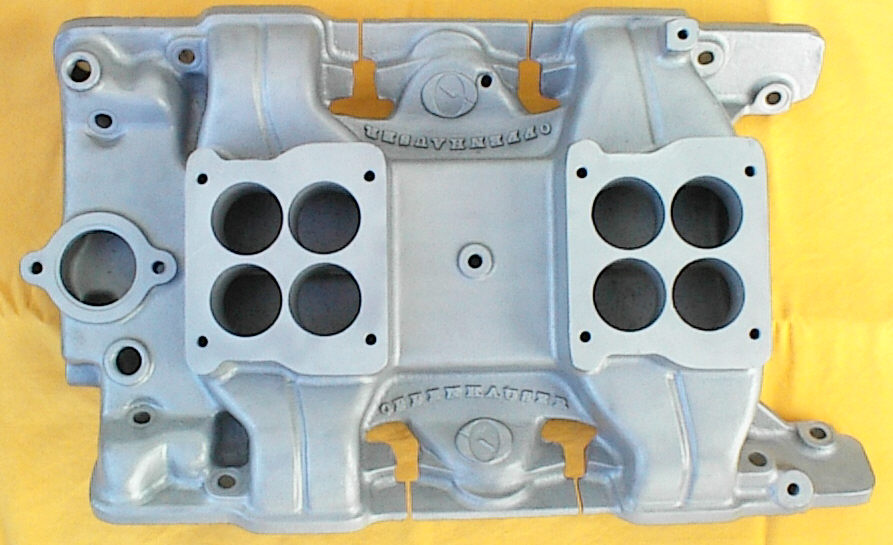

5162 (2x4 AFB carbs – with heat) (1955-1964 Pontiac V-8)

5707 (2x4 AFB carbs – competition) (1955-1964 Pontiac V-8)

5604 (2x4 Q-Jet carbs) (1955-1964 Pontiac V-8)

5756 (2x4 Q-Jet carbs – competition) (1955-1964 Pontiac V-8)

5499 (2x4 AFB carbs) (1965 and newer Pontiac V-8)

5708 (2x4 AFB carbs – competition) (1965 and newer Pontiac V-8)

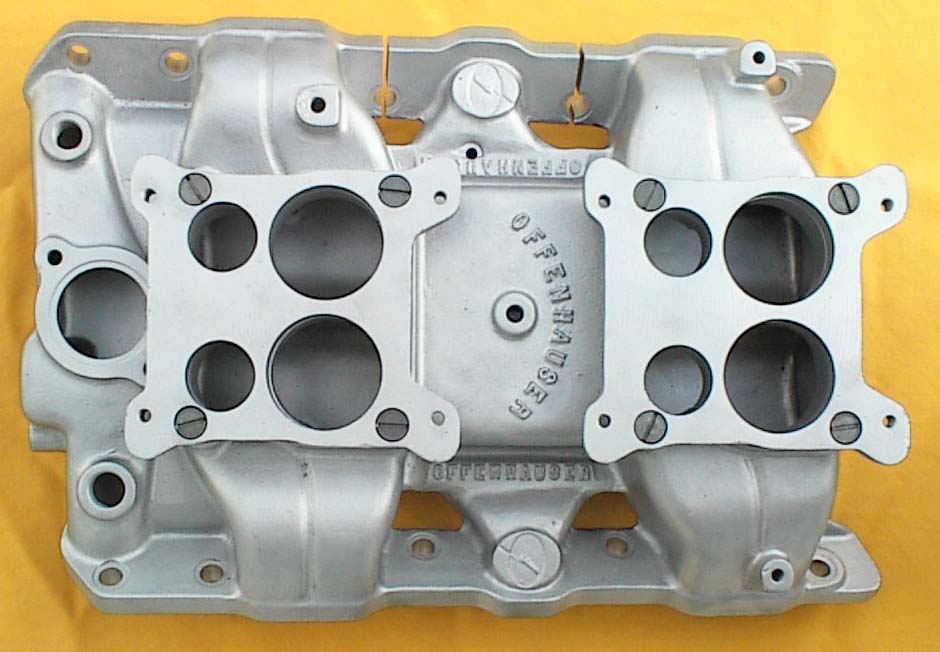

5611 (2x4 Q-Jet carbs) (1965 and newer Pontiac V-8)

5727 (2x4 Q-Jet carbs – competition) (1965 and newer Pontiac V-8)

3946 (6x2) (1955-1960 Pontiac V-8)

5163 (6x2) (1955-1964 Pontiac V-8)



WEIAND

WP2Q (2x4) (1955-1964 Pontiac V-8) (catalog number 7287)

WP2QA (2x4) 1965 and newer Pontiac V-8) (catalog number 7288)

WP6 (6x2 – 3 bolt flange carbs) (1955-1964 Pontiac V-8) (catalog number 7243)



WENTZLER

(no number) (aluminum “tunnel ram” 2x4) (1965-up heads)

(no number) (aluminum “Gutsram” 2x4) (1965-up heads)



BLOWER MANIFOLDS



EDELBROCK

B-20 (catalog number 2210) (aluminum 6-71) (1955-1960 Pontiac V-8)



MICKEY THOMPSON

2679400 (aluminum 4-71) (1955-1964 Pontiac V-8)

2679480 (magnesium 4-71) (1955-1964 Pontiac V-8)

2679600 (aluminum 6-71) (1955-1964 Pontiac V-8)

2679680 (magnesium 6-71) (1955-1964 Pontiac V-8)

2679700 (aluminum 6-71) (M/T hemi Pontiac heads)

2679780 (aluminum 6-71) (M/T hemi Pontiac heads)

2686400 (aluminum 4-71) (1961-1963 215 CID V-8)

2686480 (aluminum 4-71) (1961-1963 215 CID V-8)



WEIAND

WP671 (GMC 671 supercharger) (1955-1964 Pontiac V-8) (catalog number 7148)
