Zenith Literature for sale



1912 Zenith Carburateur catalog (French). 6 x 9 ˝ inches by 32 pages. Theory, cut-a-way drawings, description, Models ABC, DEF, DF, installation, standard specifications by model and size. Center 2 pages loose from staples, otherwise excellent used condition. Very nice early Zenith manual. Stock number Lit-0282. Price $350.00













Zenith Series 100 Duplex carburetor - Bulletin 31. 8 pages 5 1/2 x 8 1/2 inches. Description, adjustment, and parts listing for the models 105D and 105DC duplex carburetors. Very good condition, except for taped tear on back page. Lit_0967. Price $50.00 SOLD

The Zenith Carburetor - Models, Prices, Instructions from 1917. 38 pages 5 x 6 1/2 inches. Covers models L, HP, O, and OD (duplex). Very good condition. Lit_0968. Price $150.00















SOLD



SOLD

28 series – 1947 Zenith original Carburetor Service Bulletin for 28 series Zenith carburetors. 8 ˝ x 11 inches by 4 pages. Cutaway pictures, exploded view, disassembly procedures, reassembly procedures, adjustments, and special tool use. Good used condition. Stock number Lit-0100. Price $5.00.

28 series - 1949 Zenith original Carburetor Service Bulletin for 28 and 228 series Zenith carburetors. 8 ˝ x 11 inches by 12 pages. Cutaway pictures, exploded view, disassembly procedures, reassembly procedures, adjustments, and special tool use. Good used condition. Stock number Lit-0101. Price $15.00.



28ADA10 series - 1947 Zenith original Carburetor Service Bulletin for 28ADA10 series Zenith carburetors. 8 ˝ x 11 inches by 4 pages. Exploded view, disassembly procedures, reassembly procedures, adjustments, and special tool use. Good used condition. Stock number Lit-0107. Price $10.00.



30 series - 1947 Zenith original Carburetor Service Bulletin for 30 series Zenith carburetors. 8 ˝ x 11 inches by 4 pages. Exploded view, disassembly procedures, reassembly procedures, adjustments, and special tool use. Good used condition. Stock number Lit-0106. Price $5.00.



31 series - 1951 Zenith original Carburetor Service Bulletin for 31 series Zenith carburetors. 8 ˝ x 11 inches by 7 pages. Exploded view, cutaway drawings, disassembly procedures, reassembly procedures, adjustments, and special tool use. Good used condition. Stock number Lit-0109. Price $10.00.







SOLD



SOLD



SOLD



SOLD



61 series - 1947 Zenith original Carburetor Service Bulletin for 61, 61 marine, and 161 series Zenith carburetors. 8 ˝ x 11 inches by 4 pages. Cutaway pictures, disassembly procedures, reassembly procedures, adjustments, and special tool use. Good used condition. Stock number Lit-0102. Price $10.00.

87 series - 1952 Zenith original Carburetor Service Bulletin for 87 series Zenith carburetors. 8 ˝ x 11 inches by 3 pages. Exploded view, disassembly procedures, reassembly procedures, adjustments, and special tool use. Good used condition. Stock number Lit-0108. Price $5.00.



90 series (94TO, 94OU, 94BU, 94 ˝ AX, and 95TO ) – 1929 Zenith Bulletin covering the New 90 Series Carburetor. Covers models 94TO, 94OU, 94BU, 94 ˝ AX, and 95TO. Cutaway parts diagram, parts listing with parts numbers, adjustments. Smudged, but very useable condition. 5 ˝ x 8 ˝ inches by 8 pages. Stock number Lit-0171. Price $25.00.

100 series (104 ˝ , 104 ˝ B, 105, 105B) – 1929 Zenith Bulletin covering the New 100 Series Carburetor. Covers models 104 ˝ , 104 ˝ B, 105, 105B. Cutaway parts diagram, parts listing with parts numbers, adjustments. Smudged, but very useable condition. 5 ˝ x 8 ˝ inches by 16 pages. Stock number Lit-01732 Price $25.00.

110 series (114 ˝ , 115 ˝, 116) – 1929 Zenith Bulletin covering the New 110 Series Carburetor. Covers models 114 ˝ , 115 ˝, 116. Cutaway parts diagram, parts listing with parts numbers, adjustments. Smudged, but very useable condition. 5 ˝ x 8 ˝ inches by 8 pages. Stock number Lit-0173. Price $25.00.





SOLD

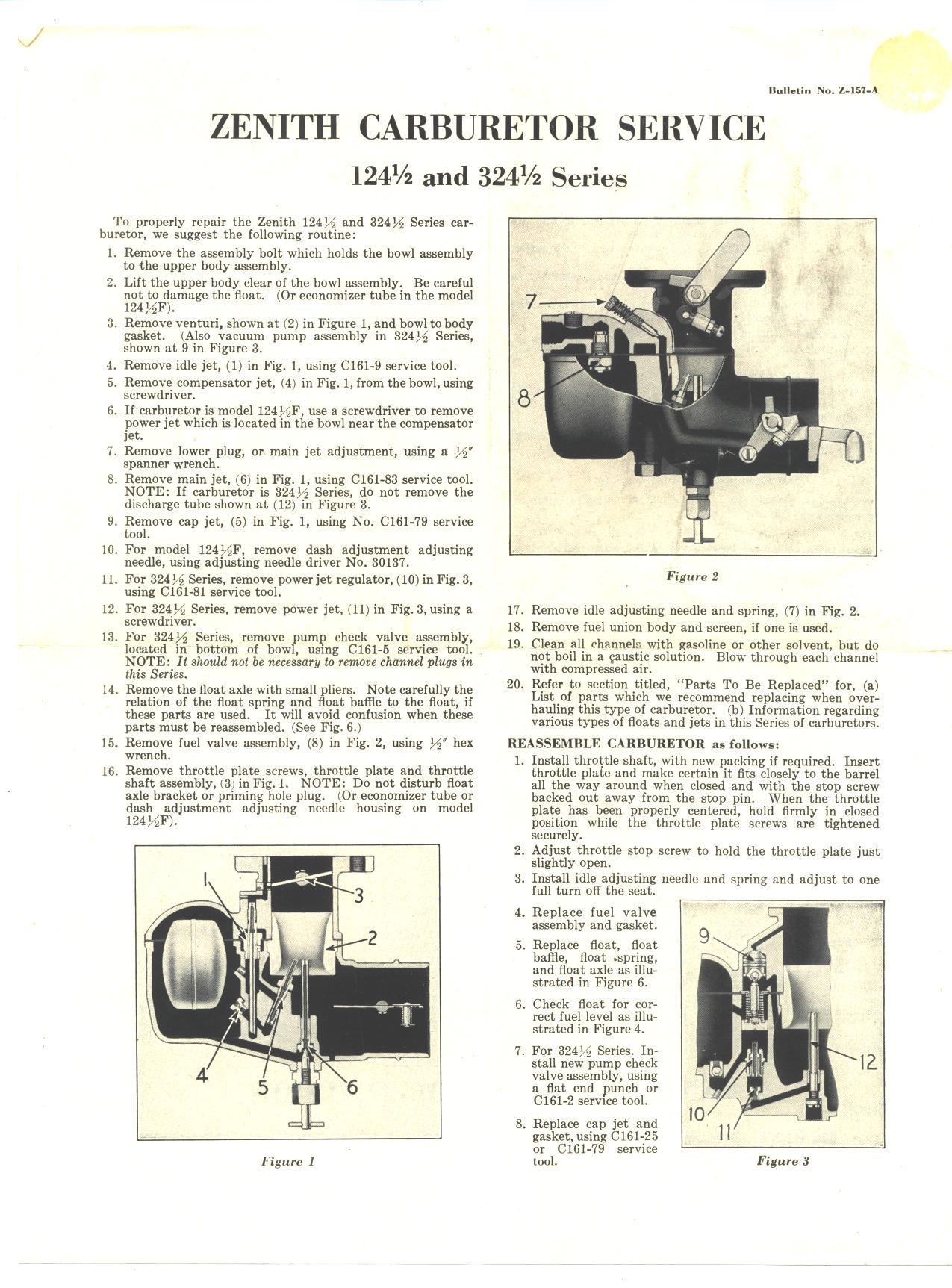

124 ˝ - 1947 Zenith original Carburetor Service Bulletin for 124 ˝ and 324 ˝ series Zenith carburetors. 8 ˝ x 11 inches double sided sheet. Cutaway pictures, disassembly procedures, reassembly procedures, adjustments, and special tool use. Good used condition. Stock number Lit-0098. Price $5.00.

161 series - 1947 Zenith original Carburetor Service Bulletin for 61, 61 marine, and 161 series Zenith carburetors. 8 ˝ x 11 inches by 4 pages. Cutaway pictures, disassembly procedures, reassembly procedures, adjustments, and special tool use. Good used condition. Stock number Lit-0102. Price $10.00.

228 series - 1949 Zenith original Carburetor Service Bulletin for 28 and 228 series Zenith carburetors. 8 ˝ x 11 inches by 12 pages. Cutaway pictures, exploded view, disassembly procedures, reassembly procedures, adjustments, and special tool use. Good used condition. Stock number Lit-0101. Price $15.00.



324 ˝ - 1947 Zenith original Carburetor Service Bulletin for 124 ˝ and 324 ˝ series Zenith carburetors. 8 ˝ x 11 inches double sided sheet. Cutaway pictures, disassembly procedures, reassembly procedures, adjustments, and special tool use. Good used condition. Stock number Lit-0098. Price $5.00.

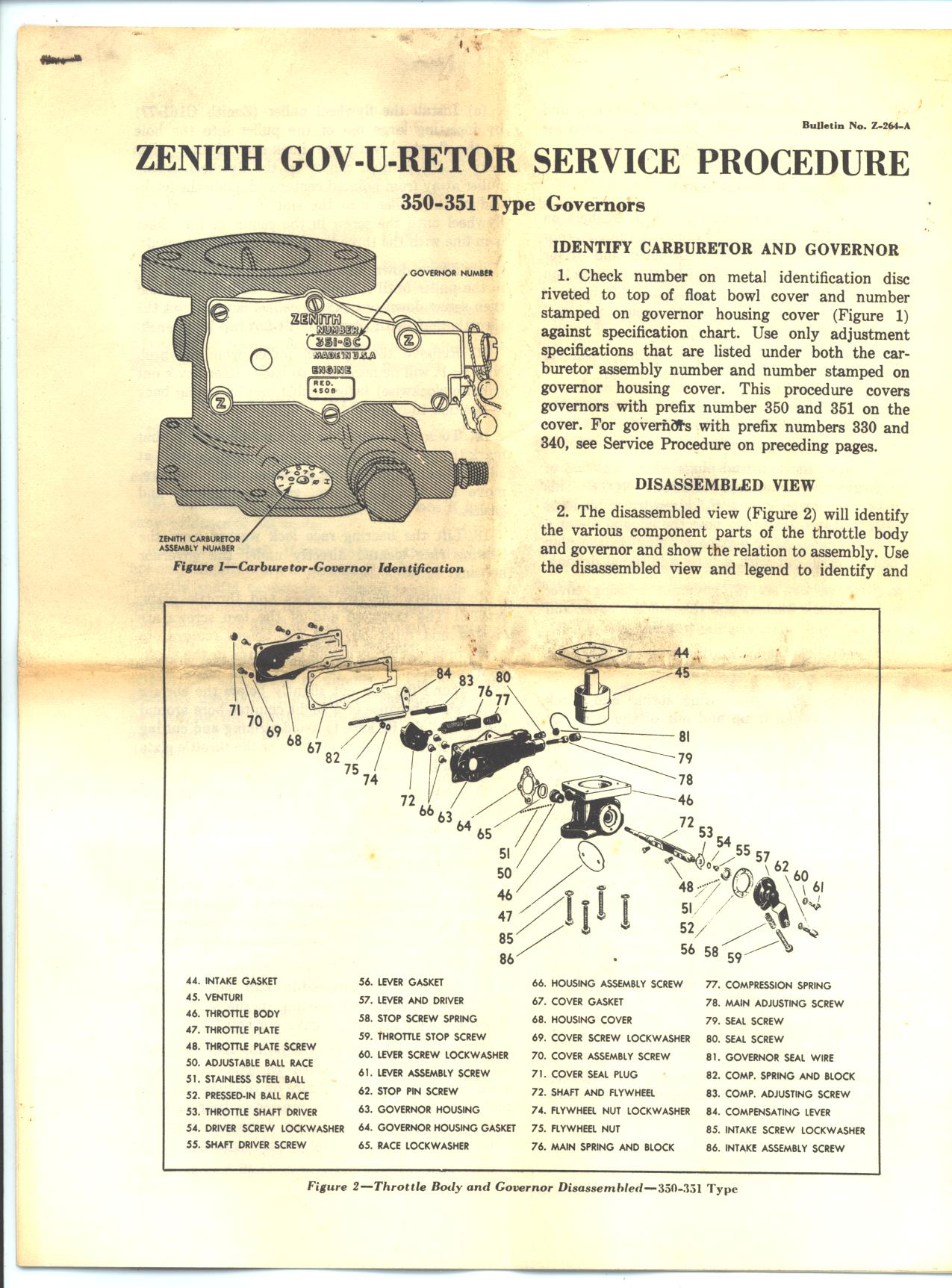

350, 351 series governors - 1955 Zenith Gov-U-Retor Service Procedure model 350 and 351 governors. Original bulletin. 8 ˝ x 11 inches by 7 pages. Exploded views, disassembly procedure, reassembly procedure, adjustment, special tools.  Good used condition. Stock number Lit-0105. Price $10.00









SOLD

SOLD



SOLD



SOLD



C6EV – Zenith Bulletin covering the Model C6EV Carburetor.  Cutaway parts diagram, parts listing with parts numbers, adjustments. Smudged, but very useable condition. 5 ˝ x 8 ˝ inches by 8 pages. Stock number Lit-0178. Price $25.00.

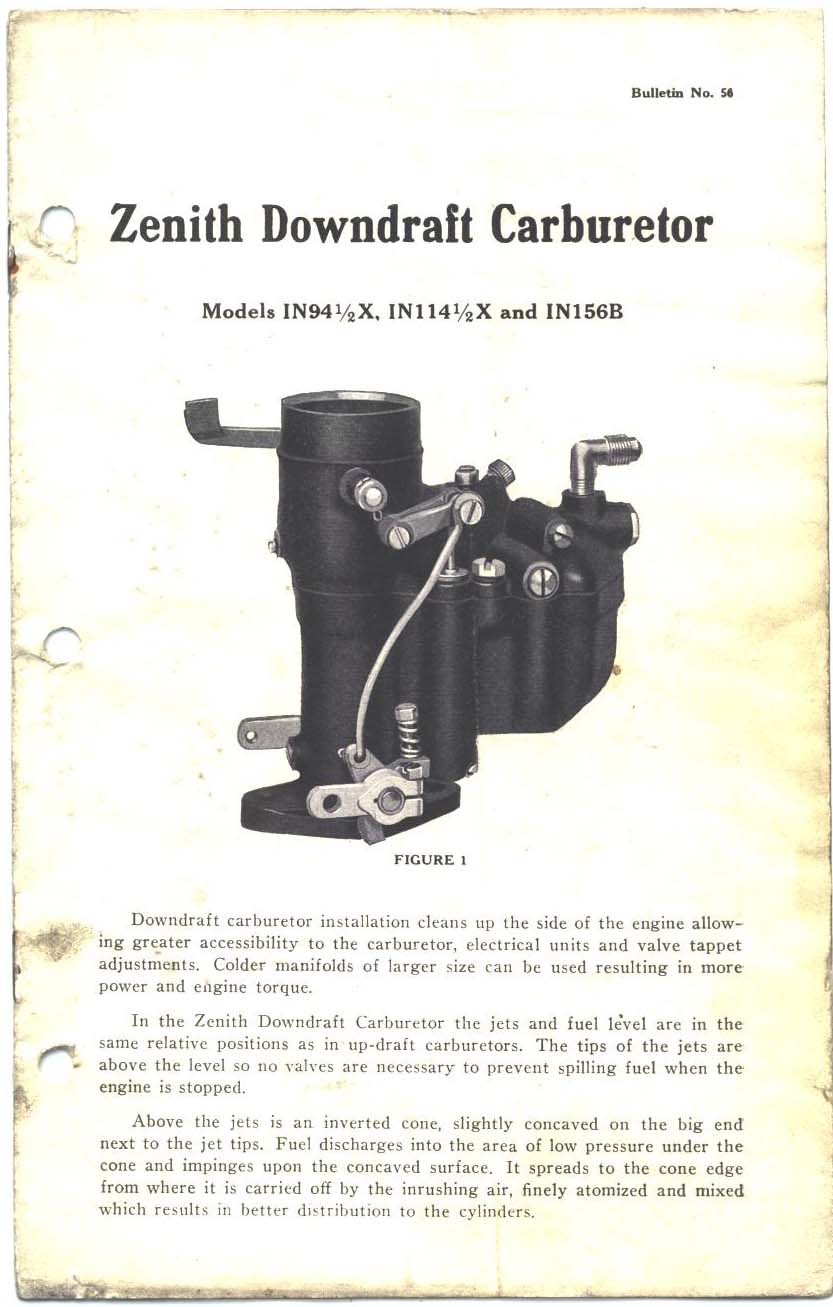

IN94 ˝ X, IN114 ˝ X, IN156B – 1930 Zenith Bulletin covering the new downdraft carburetors. Covers models IN94 ˝ X, IN114 ˝ X, IN156B. Cutaway parts diagram, parts listing with parts numbers, adjustments. Smudged, but very useable condition. 5 ˝ x 8 ˝ inches by 12 pages. Stock number Lit-0175. Price $25.00.



IN154 ˝ X, IN156B, IN157, IN158 – 1930 Zenith Bulletin covering the new downdraft carburetors. Covers models IN154 ˝ X, IN156B, IN157, IN158. Cutaway parts diagram, parts listing with parts numbers, adjustments. Smudged, but very useable condition. 5 ˝ x 8 ˝ inches by 8 pages. Stock number Lit-0174. Price $25.00.

K5, K5A, K5AC, K5 ˝ S, K6A - 1947 Zenith original Carburetor Service Bulletin for K series Zenith carburetors. Individual models K5, K5A, K5AC, K5 ˝ S, K6A. 8 ˝ x 11 inches double sided sheet. Cutaway pictures, disassembly procedures, reassembly procedures, adjustments, and special tool use. Good used condition. Stock number Lit-0099. Price $5.00.

SV Models (SV5, SV5B, SV5M, SV6, SV6M, SV7, SV8) - 1927 Zenith original Carburetor Service Bulletin for SV series Zenith carburetors. 8 ˝ x 11 inches by 8 pages. Cutaway pictures, ACTUAL PARTS PICTURES, parts number listing, adjustments. Good used condition. Stock number Lit-0177. Price $25.00.







SOLD



SOLD



 U – Zenith Bulletin covering the model U Series Carburetor. Cutaway parts diagram, parts listing with parts numbers, adjustments. Smudged, but very useable condition. 5 ˝ x 8 ˝ inches by 6 pages. Stock number Lit-0179. Price $25.00.

1952 Marine Manual, Zenith and Stromberg Installations. Original Bendix Marine Manual 8 ˝ x 11 x 2 inches thick in original hardback looseleaf binder. Approximate coverage 1930 to 1952. Exploded diagrams, parts number listings, original applications, service carburetors. Covers Zenith series 28, 29, 61M, 62M, 63M, 87, 161, 210, 263M, 457, 458, 1510MV, IN167, R20M, and TU. Stromberg series SFM all sizes. Nice used manual. Stock number Lit-0066. Price $350.00.

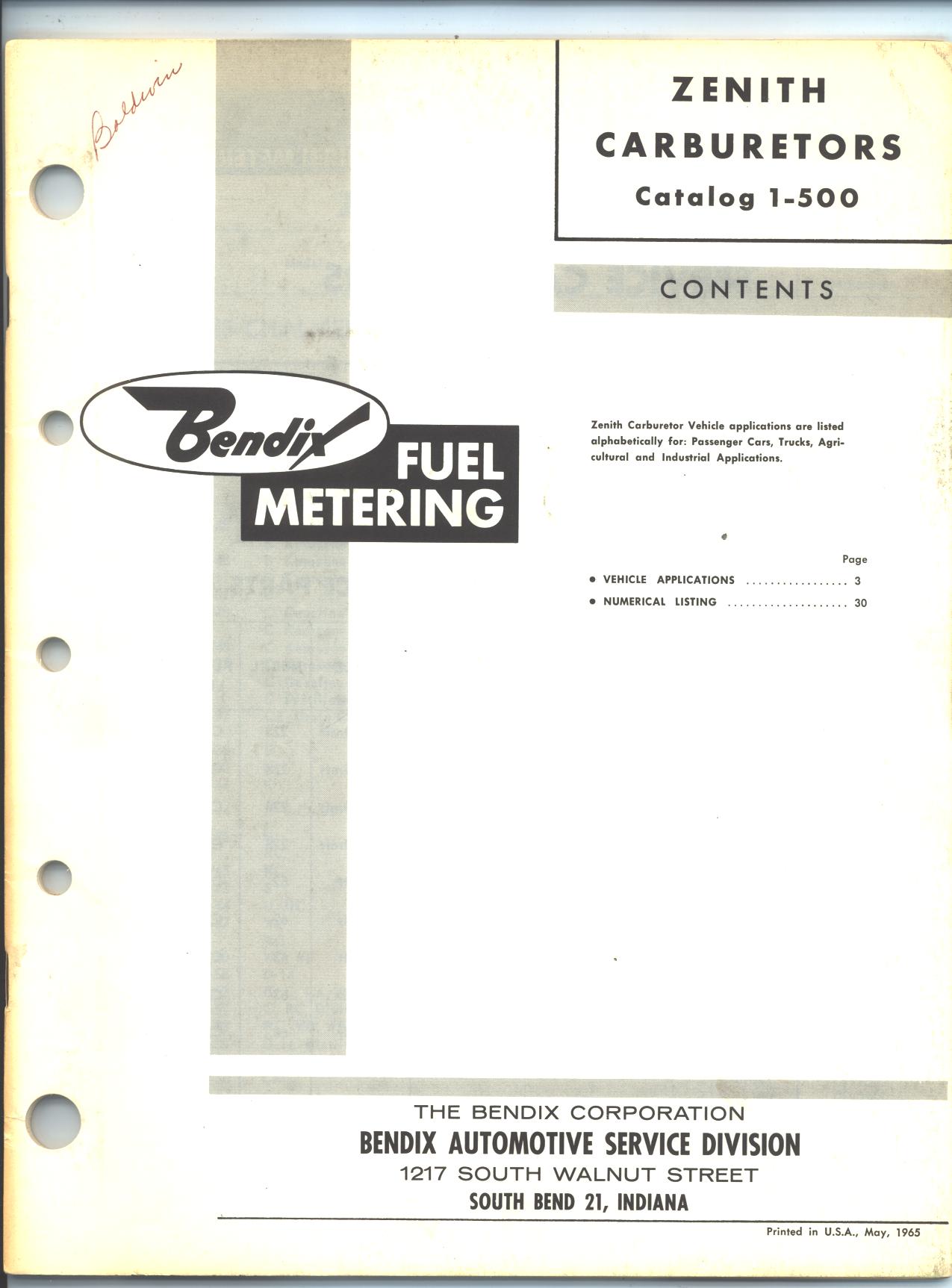

Carburetor catalog number 1-500 May 1965. 8 ˝ x 11 inches by 42 pages. Zenith replacement carburetors for truck and tractor. Original carburetor alphabetical listing with Zenith replacement carburetor. Good used condition. Stock number Lit-0243. Price $30.00.

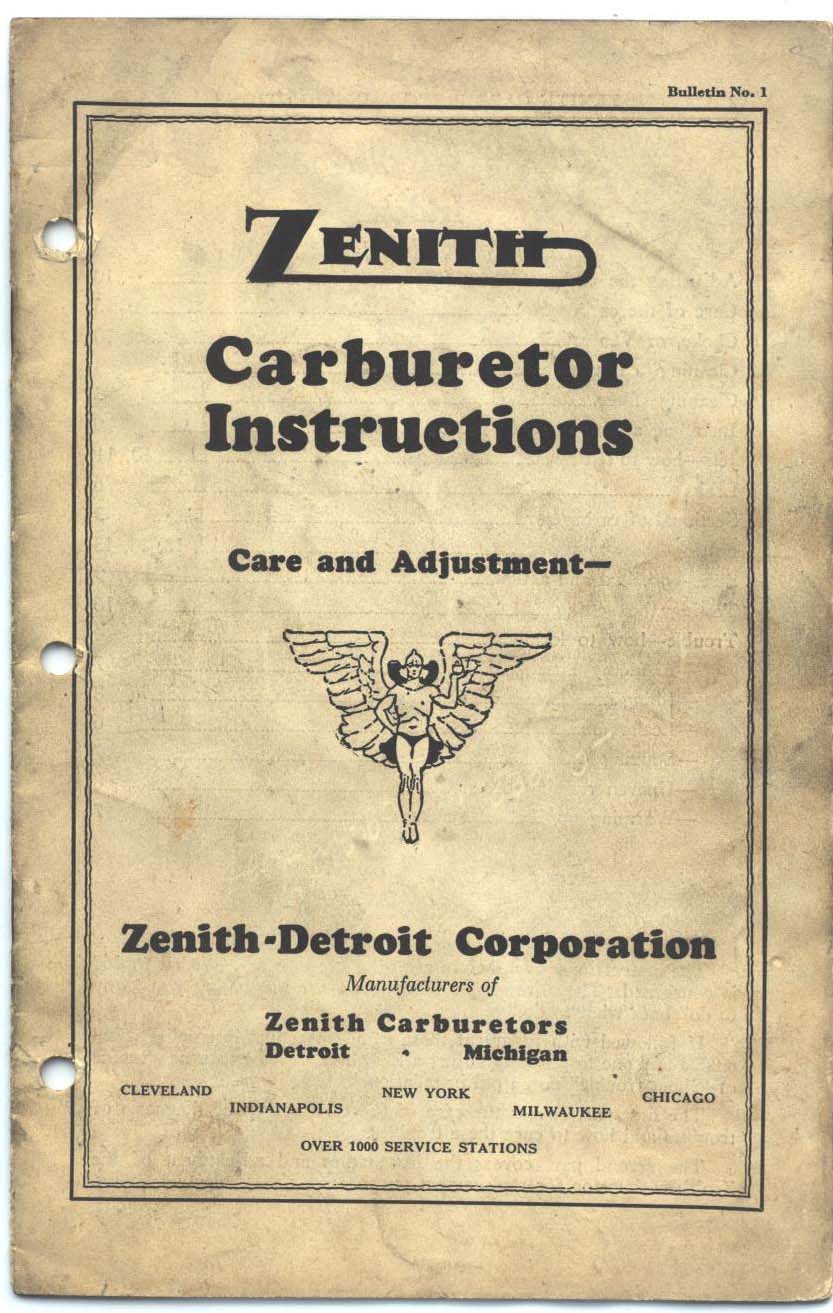

1927 Zenith Carburetor Instructions “Care and Adjustment”. 5 ˝ x 8 ˝ inches by 16 pages. Cutaway view, adjusting, trouble shooting guide, EXPLANATION OF THE ZENITH JET MARKINGS AND SIZING SYSTEM!!!!!!! Smudged, but very useable. Stock number Lit-0169. Price $50.00.



SOLD



1970 Zenith LP fuel system service manaul.  8 ˝ X 11 inches by 78 pages.  Complete service manual with cutaway drawings, exploded drawings, and actual pictures of Zenith LP carburetors and controls. Includes disassembly and reassembly procedures and adjustments.  Excellent, original manual.  Stock number Lit-0080. Price $35.00.





SOLD

1945 Zenith Gov-U-Retor Specification Bulletin 8 ˝ x 11 inches by 8 pages. Specification charts, variable parts and bench adjustment specifications. Excellent condition original bulletin. Use this bulletin in conjunction with Lit-0105. Stock number Lit-0104. Price $10.00.

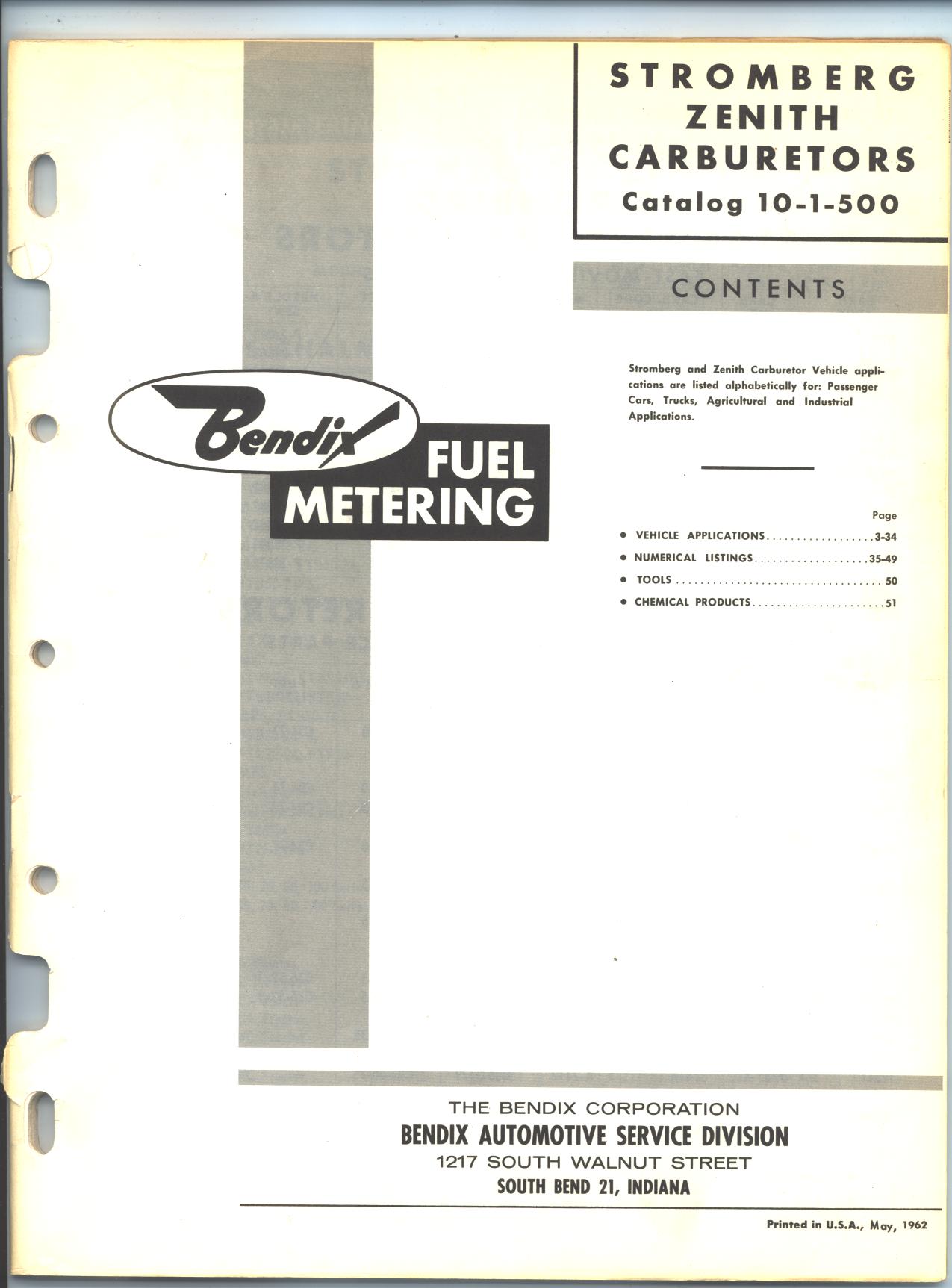

Stromberg and Zenith replacement carburetor catalog printed in 1962. Coverage from the late 1940’s to 1962. Passenger, truck, tractor, industrial applications. 8 ˝ x 11 inches by 50 pages. Replacement carburetors, repair kit, parts, special tools, OE to replacement numerical listings. Good used condition. Stock number Lit-0217. Price $30.00.

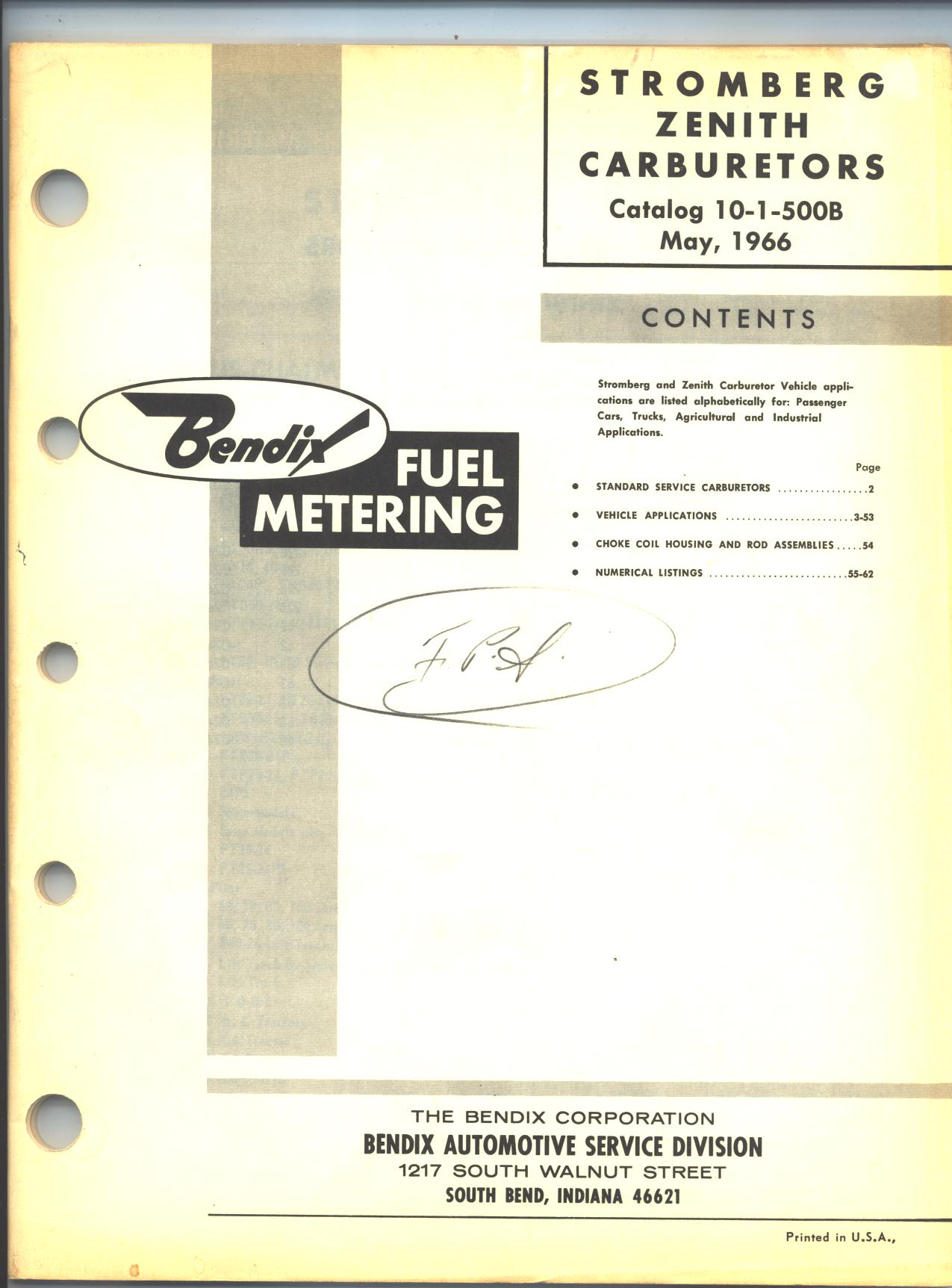

Stromberg and Zenith replacement carburetor catalog printed in 1966. Coverage from the late 1940’s to 1962. Passenger, truck, tractor, industrial applications. 8 ˝ x 11 inches by 62 pages. Replacement carburetors, repair kit, parts, special tools, OE to replacement numerical listings. Good used condition. Stock number Lit-0219. Price $40.00.

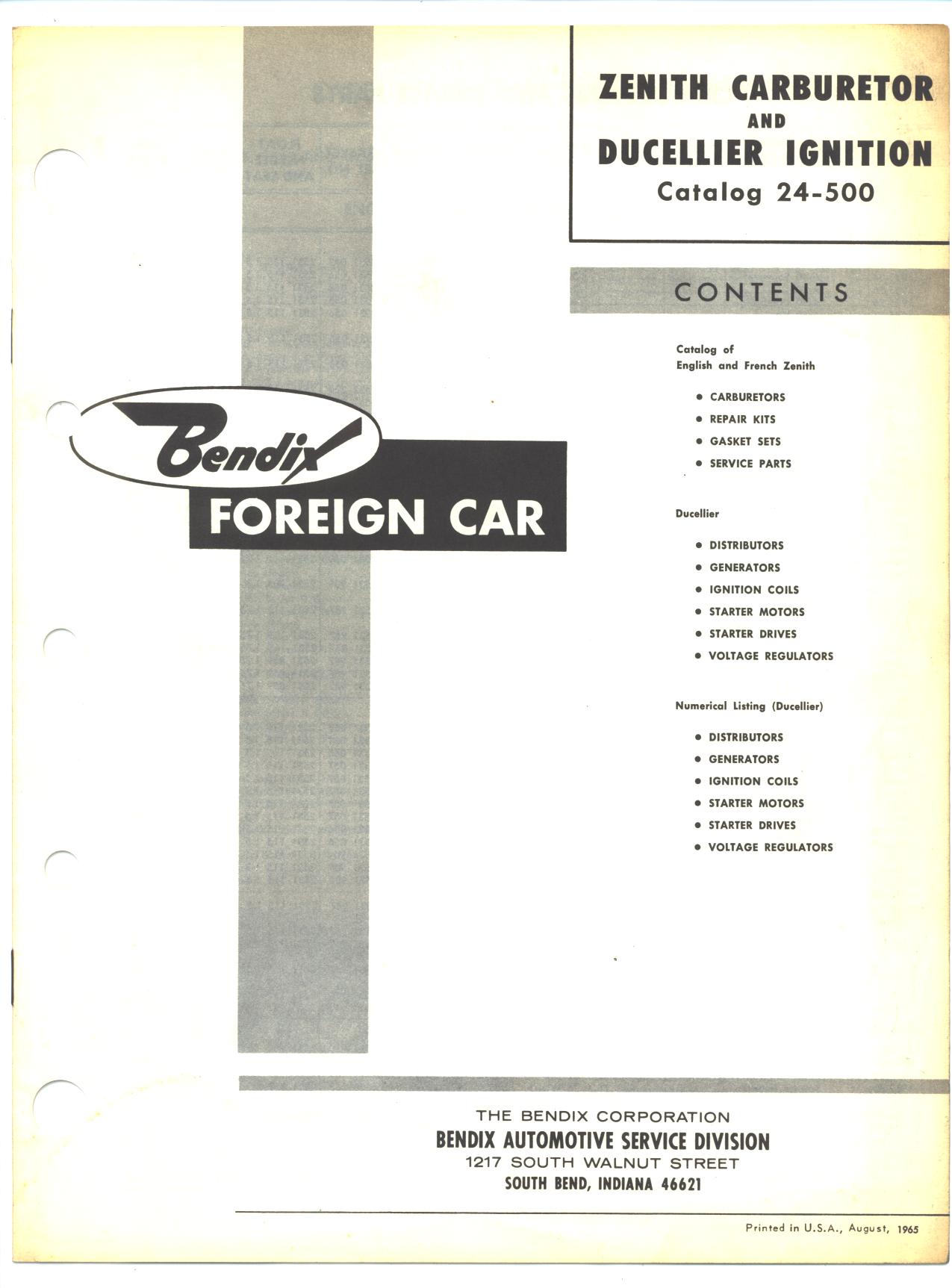

Zenith European Carburetor & Ducellier Ignition catalog with coverage from 1948 to 1965. 8 ˝ x 11 inches by 7 pages. Carburetors, repair kits, gasket sets, service parts. Excellent used condition. Stock number Lit-0224. Price $20.00.



Bendix (Stromberg and Zenith) Carburetors catalog with coverage 1955 to 1972. 8 ˝ x 11 inches by 62 pages. Applications index; ZENITH SERVICE CARB INDEX; MARVEL-SCHEBLER SERVICE CARBURETOR INDEX! Excellent used condition. Stock number Lit-0225. Price $30.00









Bendix (Stromberg and Zenith) Carburetors catalog with coverage 1955 to 1970. 8 ˝ x 11 inches by 42 pages. Applications index; service parts listing; NUMERICAL MANUFACTURER PART NUMBER INTERCHANGE.  Excellent used condition. Stock number Lit-0227. Price $25.00

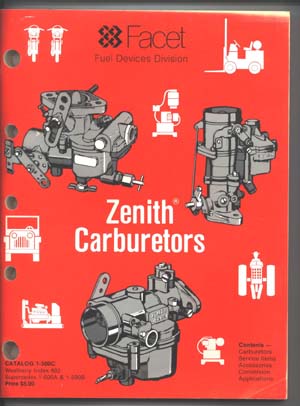

Facet Fuel Devices (Zenith Carburetors) publication 1-500C printed in 1980. Zenith applications from the mid-1940’s to date for carburetors, carb kits, gasket sets, and fuel valves. Good aftermarket selection criteria section. Numerical listing. Very good original condition, Lit-0360. Price $100.00







Carburetors and Governors (Zenith) Department of the Army TM 9-1826C; Department of the Air Force Technical Order TO19-75CCA-3. 6 x 9 inches by 321 pages. Covers Zenith type 28, 29, 30, 63, IN167SJ, 450, 1510MV, TU 3 ˝ IP series carburetors; and the Zenith governor. Excellent used condition. Stock number Lit-0238. Price $95.00. SOLD
