Carter carburetor parts

Sample of parts for Carter carburetors

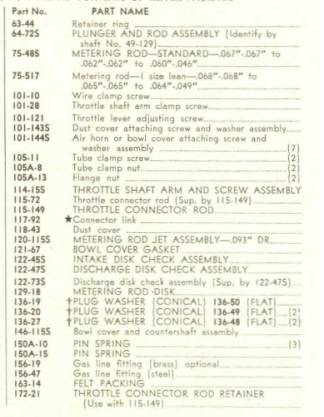

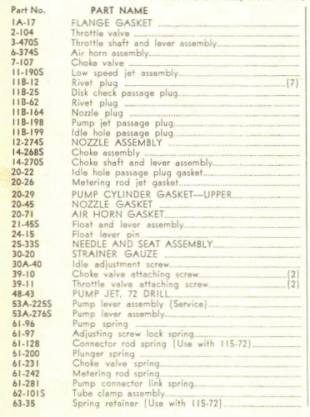

We have a VERY large selection of individual parts for Carter carburetors (also a good selection for other brands running the alphabet from Acorn carburetor to Zenith carburetors). To illustrate the magnitude of this selection, we have reproduced below the original bill-of-materials for one of our most popular carburetors, the Carter type W-1 574s used on 1946~1948 Chevrolets. Below the bill-of-material, we have listed the individual parts with their prices and the method sold. All prices are for new old stock or new, unless specifically noted as used. ALL parts are made in the USA, with the vast majority being original. Please note that a rebuilding kit of our manufacture is the minimum sale. We offer three different levels of the kit for this carburetor, as for many (but not all) others. The level-1 kit (K1) is our base kit, with the level-2 (K2), and level-3(K3) kits containing additional parts. All parts in a level-1 kit are contained in a level-2 kit, and all parts in the level-2 kit are contained in the level-3 kit.









1A-17 Flange gasket - K1

2-104 Throttle valve - $40.

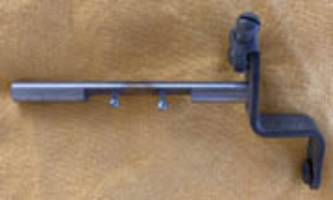

3-470s Throttle shaft and lever - $85. (pictured)

6-374s Air horn assembly (USED) $75.

7-107 Choke valve - $40.

11-190s - Low speed jet assembly $40.

11B-12 Rivet plug - $2.

11B-25 Passage plug - $12.

11B-62 Rivet plug - $4.

11B-164 Nozzle plug - $6.

11B-198 Pump jet passage plug - $6.

11B-199 Idle hole passage plug - $6.

12-274s Nozzle assembly - $40.

14-268s Choke lever assembly $28.

14-270s Choke shaft and lever assembly $40.

20-22 Idle hole passage plug gasket - K1

20-26 Metering rod jet gasket - K1

20-29 Pump cylinder gasket (upper) - K1

20-45 Nozzle gasket - K1

20-71 Air horn gasket - K1

21-45 Float and lever assembly - K3

24-15 Float pin - K1

25-33s Needle, seat, and gasket assembly - K1

30-20 Strainer gauze (no longer available)

30A-40 Idle adjustment screw - $28.

39-10 Choke valve attaching screw - K2

39-11 Throttle valve attaching screw - K2

48-43 Pump jet - $28.

53A-225s Pump lever assembly (service) - $40.

53A-276s Pump lever assembly - $40.

61-96 Pump spring - K1

61-97 Adjusting screw lock spring - $6.

61-128 Connector rod spring (used with 115-72) - $10.

61-200 Plunger spring - K1

61-231 Choke valve spring - $18.

61-242 Metering rod spring - $12.

61-281 Pump connector link spring - K1

62-101s Tube clamp assembly - $85.

63-35 Spring retainer (used with 115-72) $12.

63-44 Retainer ring - $8.

64-72s Accelerator pump (complete assembly) - K1

75-485 Metering rod (standard) - $95

75-517 Metering rod (1 size lean) - $95

Note - we can machine ANY specification metering rod for type W-1 carburetors - ask

101-10 Wire clamp screw - K2

101-28 Throttle shaft arm clamp screw - K2

101-121 Throttle lever adjusting screw - $12.

101-143s Dust cover attaching screw & lock washer - K2

101-144s Air horn & bowl cover attaching screw & lock washer - K2

105-11 Tube clamp screw - K2

105A-8 Tube clamp nut - K2

105A-13 Flange nut - $4.

114-15s - Throttle shaft arm & screw assembly - $20.

115-72 Throttle connector rod (superseded by 115-149) - $30.

115-149 Throttle connector rod - $12

Note - 114-15s and 115-149 sold as a package at $28.

117-92 Replacement part for 61-281 (no longer available)

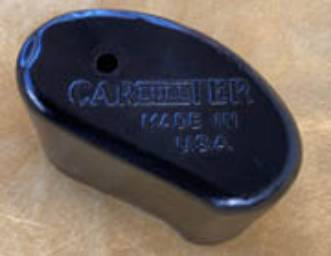

118-43 Dust cover (USED) - $40. (pictured)

120-115s Metering rod jet - K1

121-67 Bowl cover gasket - K1

122-45s Intake disk check assembly - K1

122-47s Discharge disk check assembly - K1

122-73s Superseded by 122-47s above

129-18 Metering rod disk - $2.

136-19 Plug washer - K1

136-20 Plug washer - K1

136-27 Plug washer - K1

146-115s Bowl cover and counter shaft assembly (USED) $75.

150A-10 Pin spring - K1

150A-15 Pin spring - K1

156-19 Gas line fitting (not available)

156-47 Gas line fitting (not available)

163-14 Felt packing K1

172-21 Throttle connector rod retainer used with 115-149 - K1



Note: 115-72, 61-128, and 63-35 were superseded by 115-149 and 172-21 for simplicity of service. We would strongly recommend the upgrade unless the vehicle will be judged.
