GM   FACTORY   TRIPOWER   AIR   CLEANERS

This page is here to help muscle car enthusiasts to identify the original air cleaner used with their original GM tripower. OK, for all you non-Pontiac people, these are technically three two-barrel setups. I believe Pontiac was the only company to identify them as tripower. And while we might have some of these for sale, this page should be regarded as an information only page. I will list what I currently believe to be true. I WELCOME any DOCUMENTED corrections or additions.

At one time or another, in alphabetical order, Cadillac, Chevrolet, Oldsmobile, and Pontiac all used the three two-barrel setups as factory equipment. To my knowledge, Buick never had a three two-barrel factory setup (although they did have a two two-barrel setup called compound carburetion in the early 1940’s). The first GM division to my knowledge to offer a multiple carb setup would be Cadillac, which offered a two one-barrel setup on both the V-12 and V-16, and a two two-barrel setup on the later V-16’s. Also, Buick offered a highly unsuccessful "compound carburetion" (2 x 2) setup in 1941 and 1942. But I have digressed. Back to the factory three two-barrel setups.

Most, possibly all, of the service instructions were originally silk-screened onto the metal air cleaners. However, silk-screening is quite difficult for the individual enthusiasts, and shipping costs preclude an enthusiast shipping the painted air cleaner to a specialty company. We did silk-screen when we were still restoring tri-power air cleaners, but since we no longer do so, we have disposed of our silk screens. Decals seem to be accepted by most, probably all, judging authorities. 40 years ago, we sent photos of much of this data to a decal company. We have pictured decals for clarity on this site.

DIVISION  INDEX  SECTION

CADILLAC

1958 – Cadillac part number 1553946

1959 – Cadillac part number 1554277

1960 – Cadillac part number 1554277



CHEVROLET

1958 – Early Chevrolet part number 1553222

1958 – Late Chevrolet part number 1553863

1959 – Chevrolet part number 1553998

1960 – Chevrolet part number 1553998

1961 – Chevrolet part number 1553998



OLDSMOBILE

1957 – Early (oil bath) Oldsmobile part number 1553091

1957 – Late (paper element) Oldsmobile part number 1553292

1958 – Oldsmobile part number 1553399

1966

1966 W-30



PONTIAC

1957 – Pontiac part number 1553222

1958 – Standard Pontiac part number 1553402

1958 – W/Air suspension Pontiac part number 1553854

1959 – Pontiac part number 1554060

1960 – Pontiac part number 1554060

1961 – Standard Pontiac part number 5645517

1961 – W/AC Pontiac part number 5646090

1961 Super Duty

1962 - Standard Pontiac part number 5645517

1962 – W/AC Pontiac part number 5646090

1963 – Pontiac part number 5646090

1964 w/389 – Federal Pontiac part number 5646090

1964 w/389 – California Pontiac part number 6419728

1964 w/421 – Federal Pontiac part number 9776733

1964 w/421 – California Pontiac part number 9776734

1965 w/389 – Federal Pontiac part number 6421204

1965 w/389 – California Pontiac part number 6421205

1965 w/421 – Federal Pontiac part number 6421206

1965 w/421 – California Pontiac part number 6421207

1966

 ADDITIONAL  INFORMATION  SECTION

CADILLAC

1958

1553946 was used on 1958 Cadillac. The lid was the “starburst” design. Snorkels clock at approximately 1 and 9. Both snorkels are the same length. All three carburetors are of the smaller size

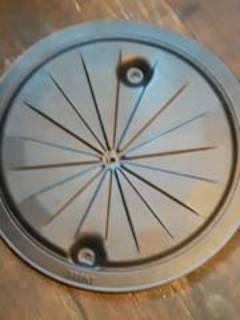

1553946 Lid

1553946 Top

1553946 Bottom

1959

1554277 was  used on both 1960 and 1961 Cadillac

1524277 complete with lid

1524277 top of bottom

1524277 bottom of bottom

1524277 divided snorkel





CHEVROLET

1553998 was used on 1959 through 1961 Chevrolet. The lid is of the “smooth” design. Snorkels are clocked at approximately 1 and 9. Note that the 9 o’clock snorkel is approximately ˝ the length of the 1 o’clock snorkel. All three carburetors are of the smaller size.



1553998 Lid

1553998 Top

1553998 Bottom





OLDSMOBILE

1957

1553091 was the first design aircleaner used on the 1957 J2, and was the only oil bath factory air cleaner used on the three two-barrel setups. This was a delta-wing design, differing from the batwing design used on several GM dual quads. All three carburetors are of the smaller size.







1553292 was the second design aircleaner used on the 1957 J2. This aircleaner, like all of the other GM three two-barrel setups except the first design Oldsmobile, used a round paper element. All three carburetors are of the smaller design. Snorkels clock at approximately 10:00 and 12:00. Note 10:00 snorkel is much smaller than 12:00 snorkel.

1553292 lid

1553292 top of bottom

1553292 filter data





1958

1553399 was used on the 1958 J2. Snorkels clock at approximately 1:30, and 11:30. Note the 1:30 snorkel is much shorter than the 11:30 snorkel. All three carburetors are of the smaller size.

1553399 lid

1553399 top of bottom

1553399 filter data



1966



W-30

W-30

Over the counter



PONTIAC

1957

1553222 was used on the 1957 Pontiac. Lid is of the “starburst” design. Snorkels clock at approximately 10 and 12. Both snorkels are the same length. All three carburetors are of the smaller size.

1553222 complete showing "starburst" lid and service instructions

1553222 top of bottom

1553222 bottom of bottom showing long "stacks"

1958

1553402 was the standard 1958 tri-power air cleaner



1553854 was the 1958 tri-power air cleaner with the attachment for the air suspension pump.

1959 and 1960

1554060 was used on 1959 and 1960 Pontiac. Lid is of the smooth design. Snorkels clock at approximately 11 and 1:30. Both snorkels are the same length. The center carburetor is of the smaller size, while the two end carburetors are of the larger size. Note the fitting on the drivers side for the air suspension pump.

1961-1962

5645517 was used on 1961 and 1962 Pontiacs without air conditioning. The lid is of the smooth design. Snorkels clock at approximately 10:30 and 12:30. Both snorkels are of the same length. The center carburetor is of the smaller size, while both end carburetors are the larger size. Note the center line of the three carburetor “stacks” is offset from the center line of the air cleaner.

5645517 Lid

5645517 Top

5645517 Bottom



5646090 was used on 1961 and 1962 Pontiacs with air conditioning, all 1963 Pontiacs, and 1964 Federal Pontiacs with 389 engine. Lid is of the smooth design. Snorkels are clocked at approximate 12:30 and 2:30. Both snorkels are of the same length. The center carburetor is of the smaller size, while the two end carburetors are of the larger size.



5646090 Lid and service data

5646090 Top

5646090 Bottom



6421204





6421205







6421206







6421207





1961 Super Duty (no picture).

This air cleaner was used with the aluminum super duty manifold in 1961. The air cleaner has no snorkels. Basically 5645517 with the snorkels removed, and seven oval slots the same size as the snorkel openings along the back side of the air cleaner. The slots measure 4 1/4 inch wide by 1 7/8 inch tall spaced 3/4 of an inch apart. The lid is of the smooth design. The center carburetor was of the smaller size, while the two end carburetors are the larger size.
